Omega C330 Converter
REF: BM00315
This Machine Has Now Been Sold
Slitting and rewinding machine - suitable for the pharmaceutical and security label markets.
Year 2010
Web width: 330 mm

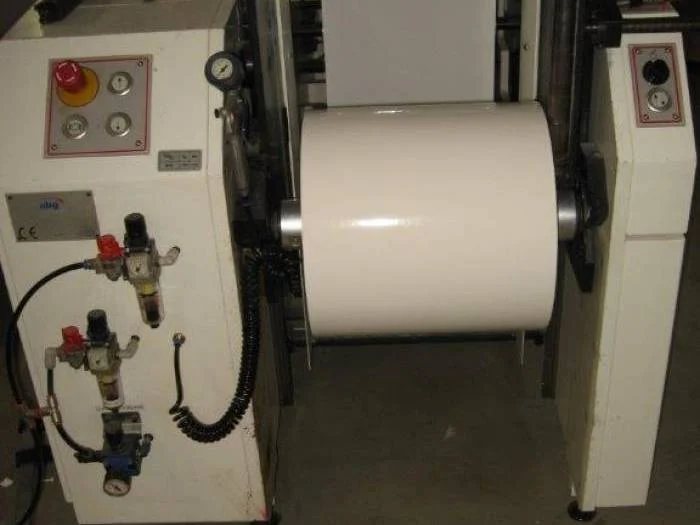

Servo driven 1000 mm unwind with roll lift, web guide and splicing table with interlocked pneumatic web champs and tape dispenser
2 x die cutting stations with 1 Kocher & Beck Gap Master upgrade
Perforation and creasing
Electronic web guiding system with ultra-sonic sensor suitable for clear substrates
PIV box for better web tension control
Inspection frame, suitable for mounting flag/splice detection sensors and missing label detection
Back scorer die-unit
1 x Bulk waster rewind
2 x Matrix stripping stations
Scissor slitting knife box, complete with 10 sets of rotary scissor knives, auto knife throw off, removable knife shafts for easy webbing 'on the run' lateral adjustment
Die lifting tool
Air assisted web turn bars
