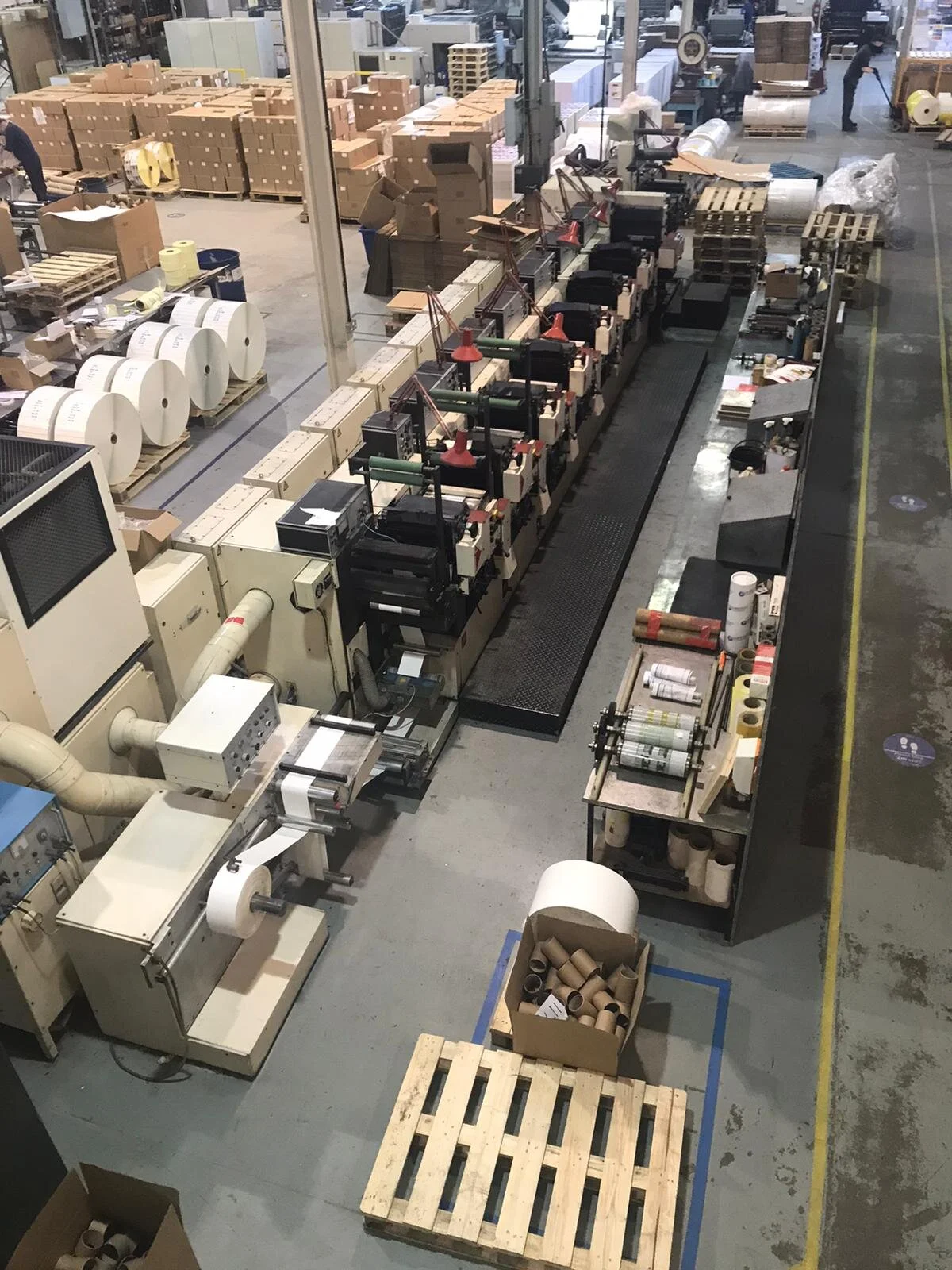

Nilpeter B280 - 7 Colour Letterpress

REF: BM00478
SOLD

Age: 1991
Web width: 300mm
Print Width: 280mm
1 x Unwind to accept 3” reel shaft (76mm dia)
1 x Infeed
1 x Web Cleaner
1 x Corona discharge Treater
1 x Electronic Web Guide unit
2 x Delam/Relam units (can be moved to any print station for special jobs)
7 x UV Rotary letterpress printing units with ink duct agitators (keeps the ink active, excellent retrofit)
1 x UV Flexographic unit with ink pump
8 x Chiller plates for printing on film and film substrates or coatings plus refrigeration unit to circulate chilled water through the chiller plates (1 on each print station, 2 on the last print station)
1 x Middle Feed
1 x Turnbar (to turn the web over)
3 x Rotary die-cutting stations
1 x Rotary die/sheeting station
Length Slitting (linear slitting)
1 x Turret Waste Rewind
1 x Outfeed Unit
1 x Product Rewind Unit to accept 3” reel shaft (76mm dia)
1 x Conveyor unit for production of cut sheet or profile die cut products
* Video Inspection camera
* Fully automatic registration
* Trim extraction unit

INNOVATIVE MACHINE, VERY RARELY SEEN ON THE MARKET

1. General and added labels

2. Mono short run flexible packaging

3. Folding Box board cartons (pharmacutical boxes, cosmetic cartons, food cartons, sleeves etc.)

4. Profile cut patterns (paper cups etc.)
