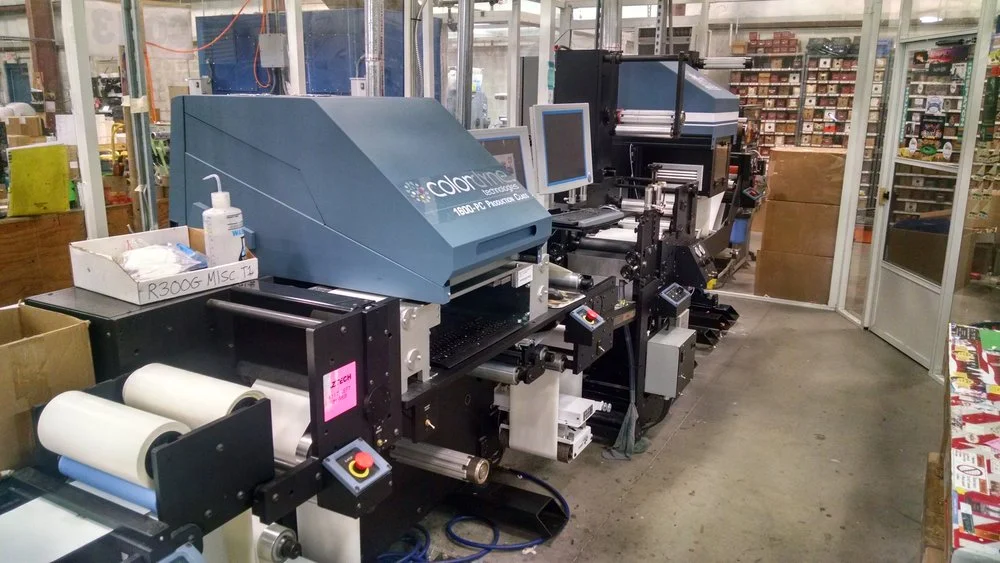

Colordyne 1600-PC Laser Series Production Class High Speed In-Line InkJet Print System with Laser Die Cutting System by AzTech

Ref. BM00164

This Machine Has Now Been Sold

Age: 2012

Colordyne PC Chassis Engine, 5 Blade Unit, 1600x1200 dpi

CDT – Job Control Software with PC

Flatbed Scanner with Color Calibration

160 Feet/Minute Max. Printing Speed

Dual-Servo Driven Web Control for Critically Precision Web Speed

Infeed Contact Dust Collection System to Remove Contamination Particles Before Printing Area

User-friendly Operator Touch Screen Control Panel for Easy Operation

Accuweb Ultrasonic Web Guide for Precision Lateral Web Control into Print Area

24” Max. Diameter Cantilevered Unwind with 3” Diameter Inflatable Spindle

28” Long x 14.5” Wide Raised Vacuum Platen

24” Max. Diameter Cantilevered Rewind with 3” Diameter Inflatable Spindle for use when not utilizing Rotary Die Stations

Infeed and Exit Festoons for Precise Web Tension Throughout Printing Cycle

208-240 Volt 3-Phase, 60 Amp with a Neutral Accuweb Ultrasonic Web Guide for Precision Lateral Web Control into Flexo Printing and Laser Die Station

20” Max. Diameter Cantilevered Top-Side Lamination Tower with 3” Diameter Pneumatically Inflatable Spindle and Nip Roller

LasX Lasersharp Laser Processing Module, Model LPM400 with Heat Exchanger, 350mm x 350mm Processing Area, and PC-Based User Interface Software, (2) Separate 208-240 Volt, 3-Phase 60 Amp Services

26” Max. Diameter Waste Windup with 3” Diameter Pneumatically Inflatable Spindle

Adjustable RD Underscore Unit for Precisions Edge Trim

26” Max. Diameter Cantilevered Rewind Spindle with 3” Diameter Inflatable Spindle with 1 HP DC Drive Motor

Electronic Rewind Tension Control

Reversible Rewind for either Over or Under Winding

Inspection Strobe Light with Adjustable Arm

Flexographic Print/Coating Station with Servo Control, Hot Air Dryer, Wilson Manufacturing Tint Roller, Doctor Blade.

GEW UV Curing Unit, 380-480 Volt, 3-Phase 20 Amp

Wasatch SoftRip Production Class Edition software

Newly upgraded to the Tigris ink system (as of 7.28.16)
