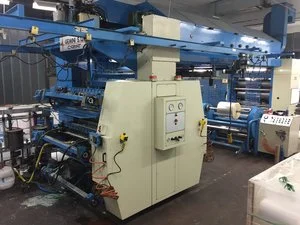

Carint Gemini 1150 - 6 Colour CI Flexographic Press

Ref. BM00213

This Machine Has Now Been Sold.

Manufacturer:  CARINT

Model: GEMINI

Year of construction: 1991

Material: HDPE, MDPE, LDPE, PP, Paper

Web width: 1150 mm

Print width: 1100 mm

Number of colours: 6

Drying system: Electrical

Printing repeat max.: 800 mm

Printing repeat min.: 285 mm

Unwinder: 800 mm

Rewinder: 800 mm, 4 reels maximum

Core: 70-76 mm and 150 mm at the unwinder

Other details:

BST Genius Video Camera

Web Guiding: BST before and after printing

Web cleaning: SIMCO

Ink pumps: 6

Doctor blades chambers

2x2 hoists Puricelli 250 daN

Linear and transversal motorized registers: +/- 0,15 m

Anilox rollers
4 x 280(2012 year)
3 x 100
1 x 80
2 x 140
2 x 160

Print Cylinders + Gears
For plate thickness: 1.14mm
Repeat:
285 mm.     x    4 pcs.
300 mm.   x      6 pcs.
430 mm.   x      6 pcs.

For plate thickness: 2.54mm
Repeat:
360 mm.     x    6 pcs.
380 mm.   x      6 pcs.
400 mm.   x      6 pcs.
420 mm.   x      6 pcs.
460 mm.   x      6 pcs.
480 mm.   x      6 pcs.
800 mm.   x      6 pcs.

In excellent condition, machine has been serviced regularly.
