Specification

Camera

  • Dimensions: 230mm x 165mm x 110mm

  • Sony Super HAD Color CCD Sensor

  • Motorised 18 x Zoom, Iris, Focus

  • 8 Close up lens

  • 90mm x 67mm appropriate maximum viewing area

Main Console

  • Dimensions: 65mm x 305mm x 225mm

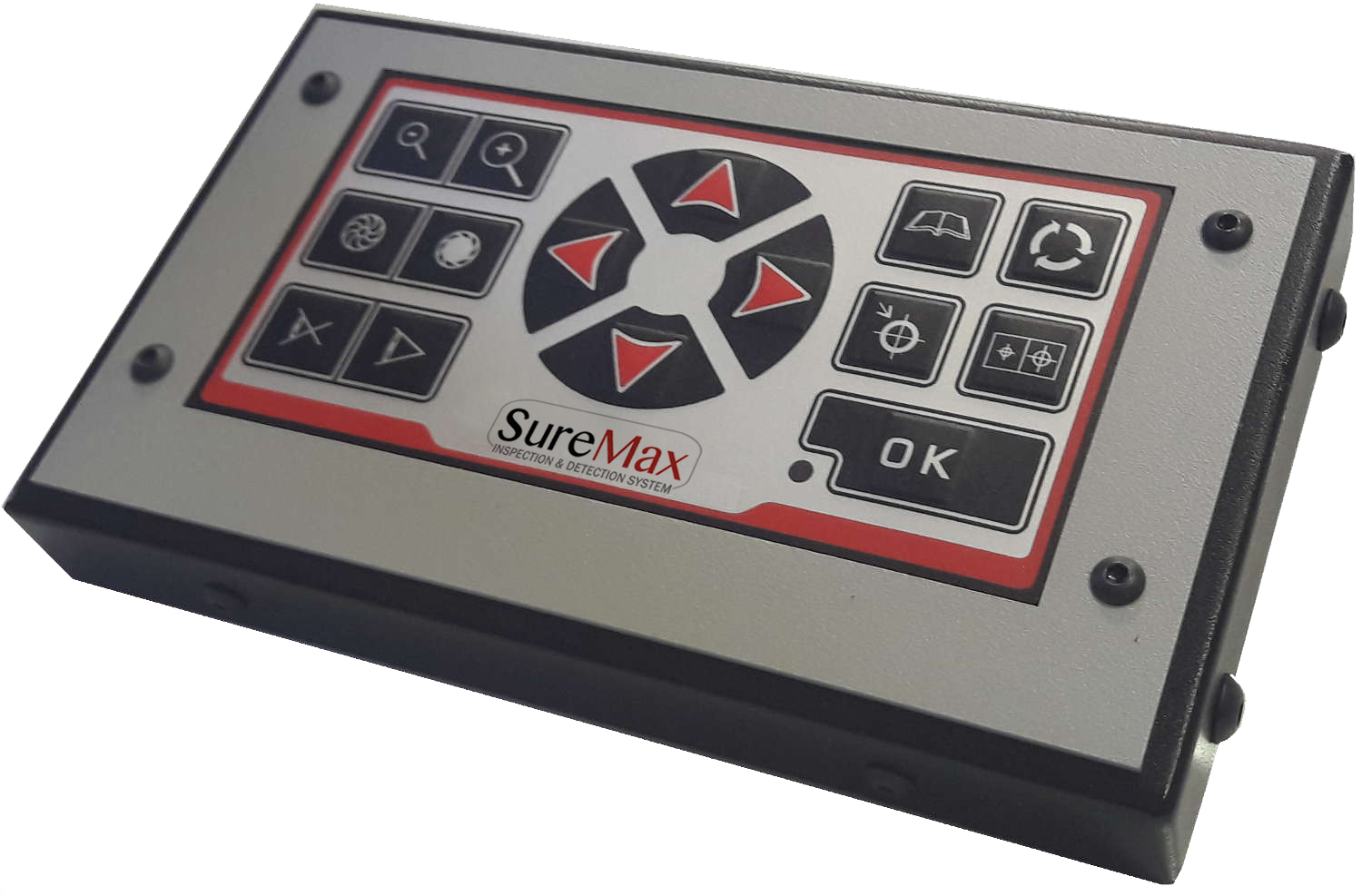

  • Front mounted keypad to control the following: Zoom, Focus, Iris, Step movement along web

Synchronisation

  • Magnetic proximity sensor

  • Universal sensor mounting bracket

  • 5 metres of sensor extension cable

On Screen Display

  • Full Color User Interface for easy setting of system parameters and gear synchronisation

Traverse

  • Manual Traverse up to 500mm

  • Standard press side frame mounting bracket

Cables

  • 3m Umbilical from Console to Camera

  • 1.5 Power Cable

Monitor

  • NOT INCLUDED

  • Any PC monitor can be purchased by customer

Features

  • Hyper-strobe

  • Single position memory storage

  • Dynamic Scan

  • 180 Degree Image Flip

  • Split Screen

  • Non-volatile Program Settings

  • Simple DIY Installation

  • Internal Surge Protection

Traverse and cable length requirements vary on each press, please check to ensure that the standard lengths quoted meet your requirements.

The above specification is for a standard web viewer requiring a clean/noise free, 230 volt, 50/60 Hz 5 amp mains supply. If different is required we must be notified on receipt of order.

Please note that the Autoview system has not been designed for use within hazardous / explosive areas.

The above and attached system specification type is covered by a 1 year parts and labour only warranty from the date of dispatch.
