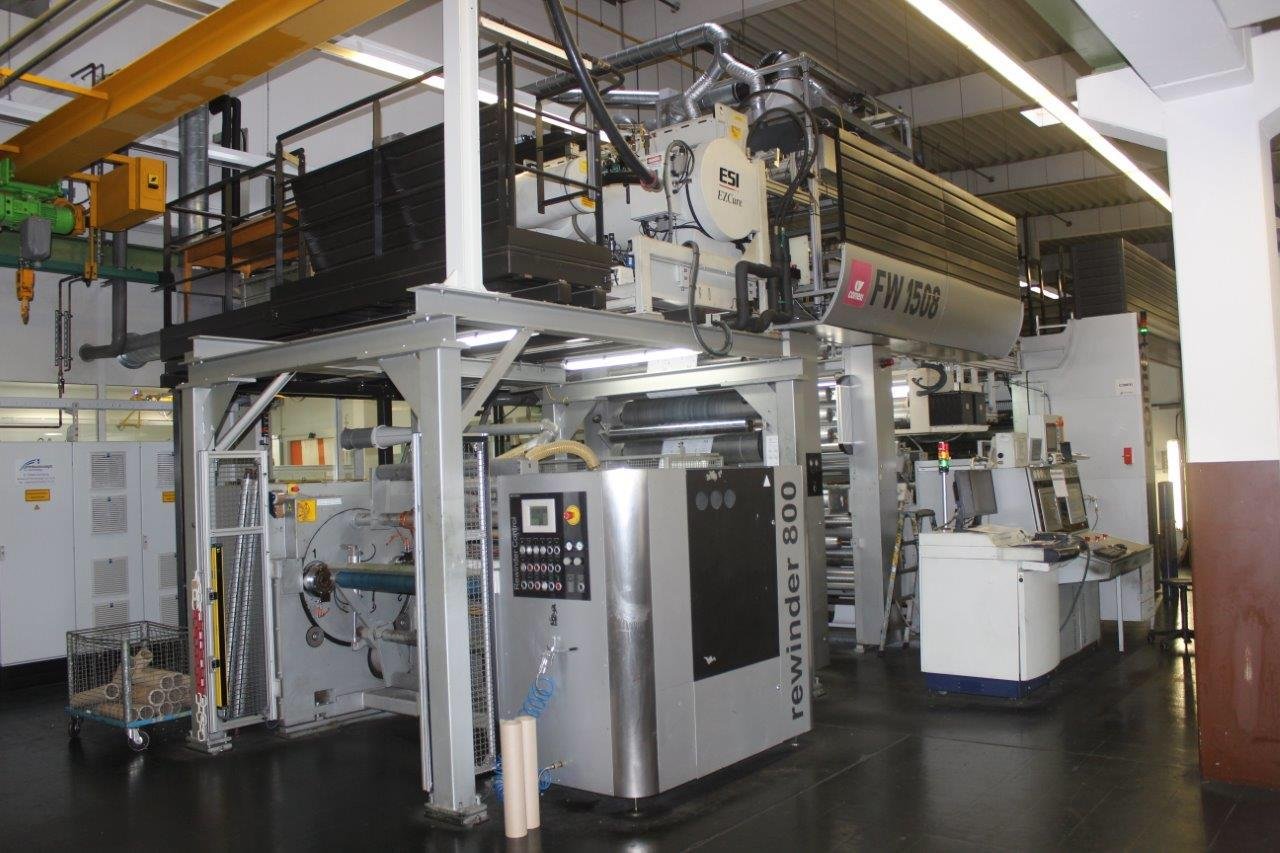

Comexi FW 1508 (Gearless)
REF. BM00563
SOLD
Year 2007
8-color UV printing
Material width: max. 1200 mm
Print width: max. 1150 mm
Material thickness: PET, OPP, aluminium and composite materials 12 - 150. Mechanical speed: 0 to 350 m / min.
Production speed depending on the material, Format length: 350 to 800 mm // Repeat adjustment: manual / stepless
Color system: inking unit 1-8 Þ UV inks / electric beater (EB) Typing speed: max. 10 m / min.
Roll diameter: unwinding 800 mm
Roll up 800 mm
Roll weight: max. 500 kg
Corona pre-treatment device: Enercon 9 KW generator Web tension: 20 - 300 N.
UV drying: Print concept
8 UV
Video web observation: AVT model Print Vision Dual Model Side edge control: 1 piece rotating frame web edge control with ultrasonic Edge sensor and electronic actuator from BST Two antistatic trusses
Compressed air: 6-8 bar (water / oil free) with a lot of accessories.
The machine is hybrid It dries UV (1 lamp per printing unit) and can also be dry with an E projector for wetflex inks (wet in wet)
The machines are considered top machines in the world of flexo printing on central cylinders
