The Berkeley HSP is a high speed label roll die cutting, automatic cutting and rewinding machine - perfect for the plain label industry.
Features
Glueless, can save both glue and electricity consumption costs of around USD10,000/year!
Servo driven and accurate auto closed-loop tension control

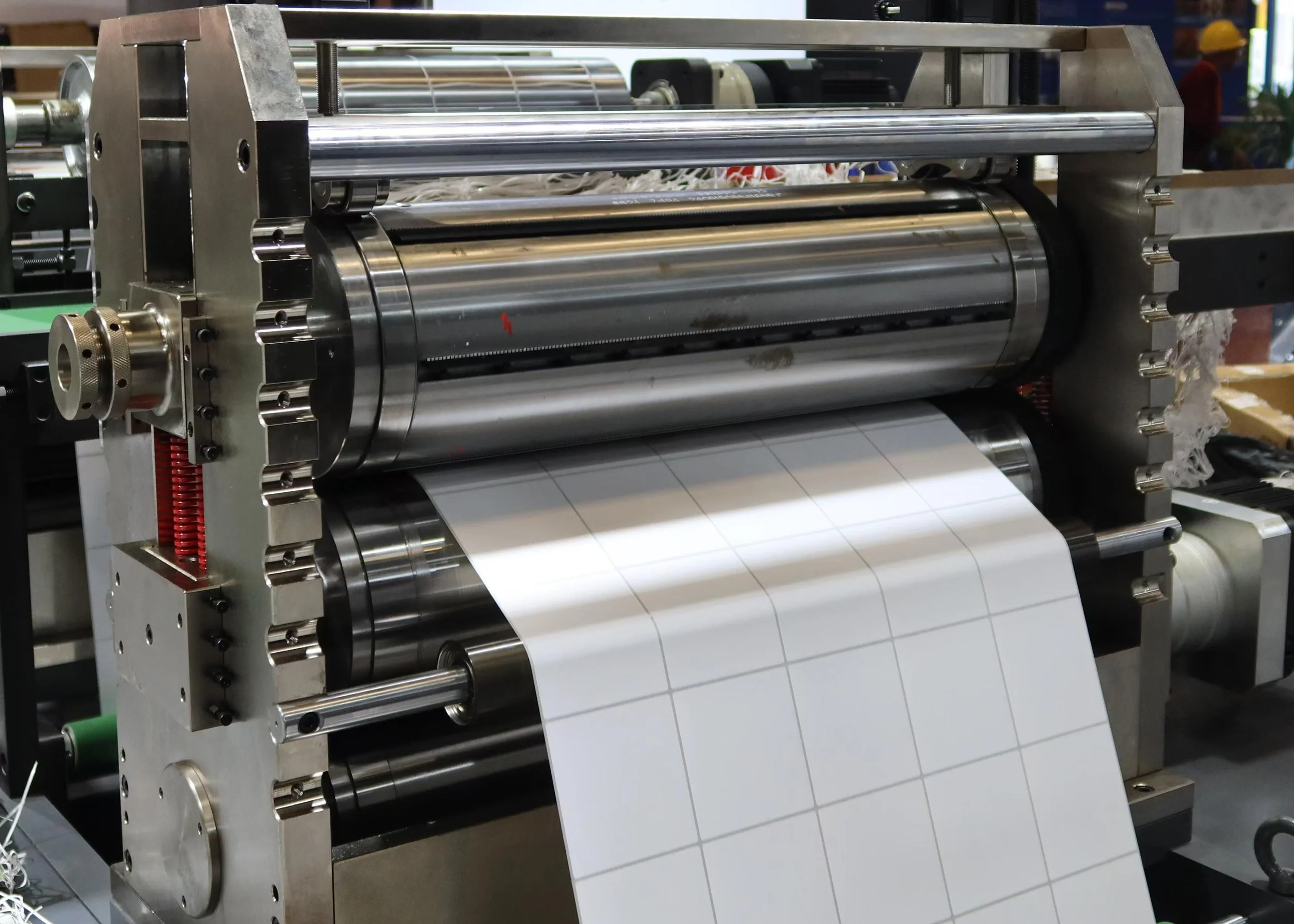

Rotary die cutting function with 3 rollers structure
Waste matrix - with crush knife system. The waste labels are cut by the crush knife and brought out through a conveyor belt.
Waste system is controlled by a separate servo motor.
2 x High speed die-cutting stations with precision cutting in between labels.
Automatic core loading and feeding system. Servo motor controlled for accurate core positioning.
PLC and touch screen automatic control. User friendly operation.
Noise reduction even at high speeds.
Metering and label counter.
SICK Photoelectric sensor.
4 x Automatic turret rewinding spindles.
12 x rewinding shafts included as standard: 4 x 1”, 4 x 1.57”, 4 x3”
Automatic roll ejecting system.
No changeover times involved (other than rewind shaft changeover).
Speed: 120m/min (in glueless mode).
25mm web stressed steel profile frames on die cutting stations designed for stability.
Pneumatic expansion shaft for multiple single roll rewinding,
Automatic tail end labelling.
