KO-PACK Combination Press
REF. BM00620
Age: 2004
Colour： 8 flexo unit + 1 screen unit
Rewind Unit
Printing speed: 150m/min
Max. web width: 400mm
Max. Print width: 390mm
Print repeat: 254mm~609.6mm
Rotary Diecut Repeat: 254mm~609.6mm
Rotary Embose Repeat: 254mm~609.6mm
Max. unwind Diameter: 3 inch core, 6 inch core, ∅1500mm X 2shaft
Max. Rewind Diameter: 3 inch core, ∅800mmX1shaft
UV device: 11.2K(1 light), 6.4K(2 light), 3.2(6 light)
Flexo unit with enclosed doctor blade chamber
Cold foil
UV units manufactured by Kopack
BST 1000 Web Guide
Drive Controls by Mitsibushi
Video Inspection Unit
Rotary Die Station
Infeed Unit
Unwind Unit
Available: Immediately
Still under power/not possible to see machine in operation
Not servo driven

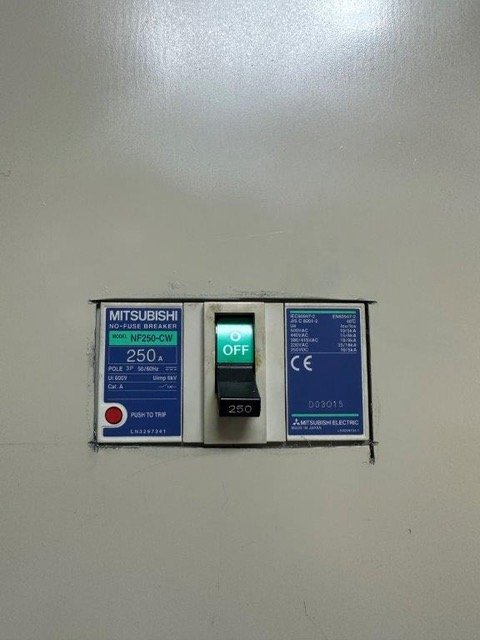

Power Supply: 220V 250A
Manual ink fill, see photos.

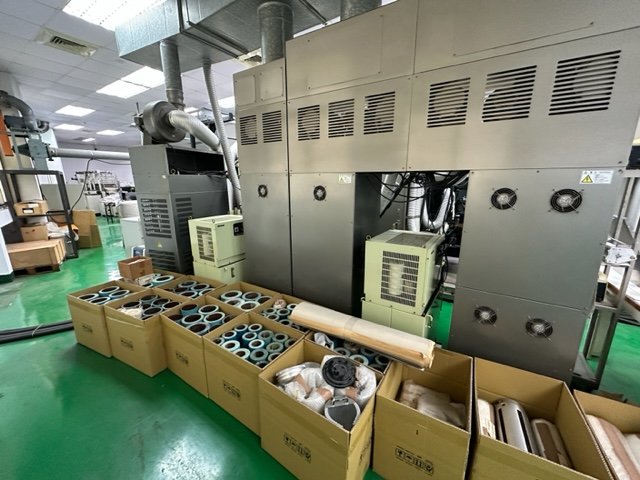

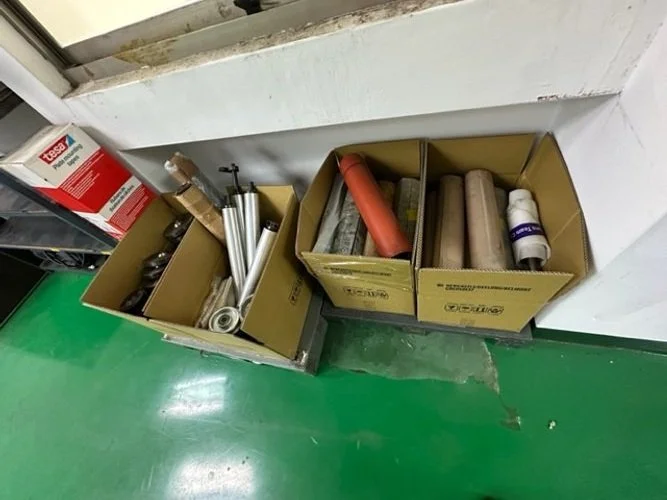

Tooling (as seen in photos below)
