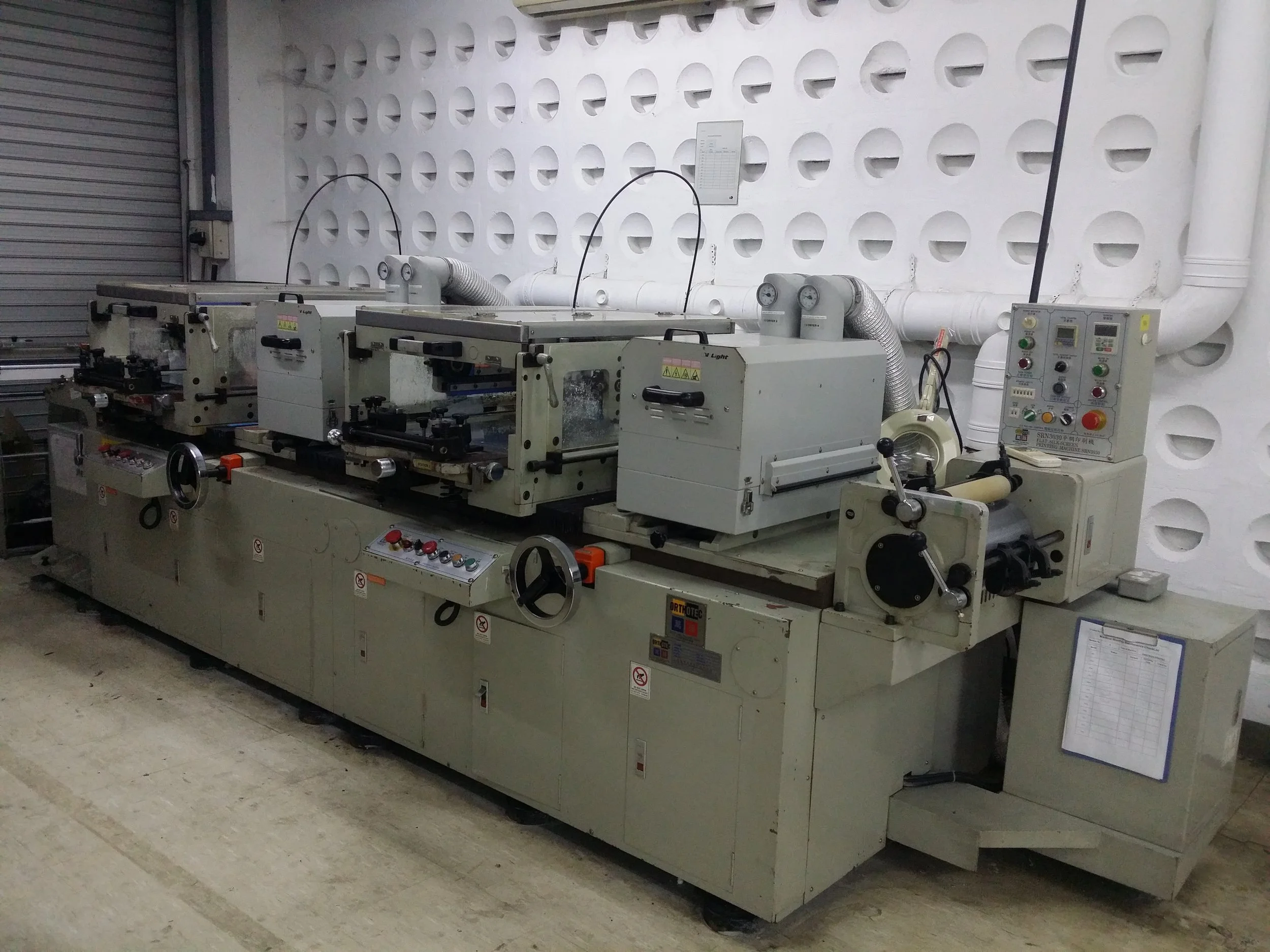

Orthotec Silkscreen Roll-to-Roll Machine

REF: BM00274
SOLD

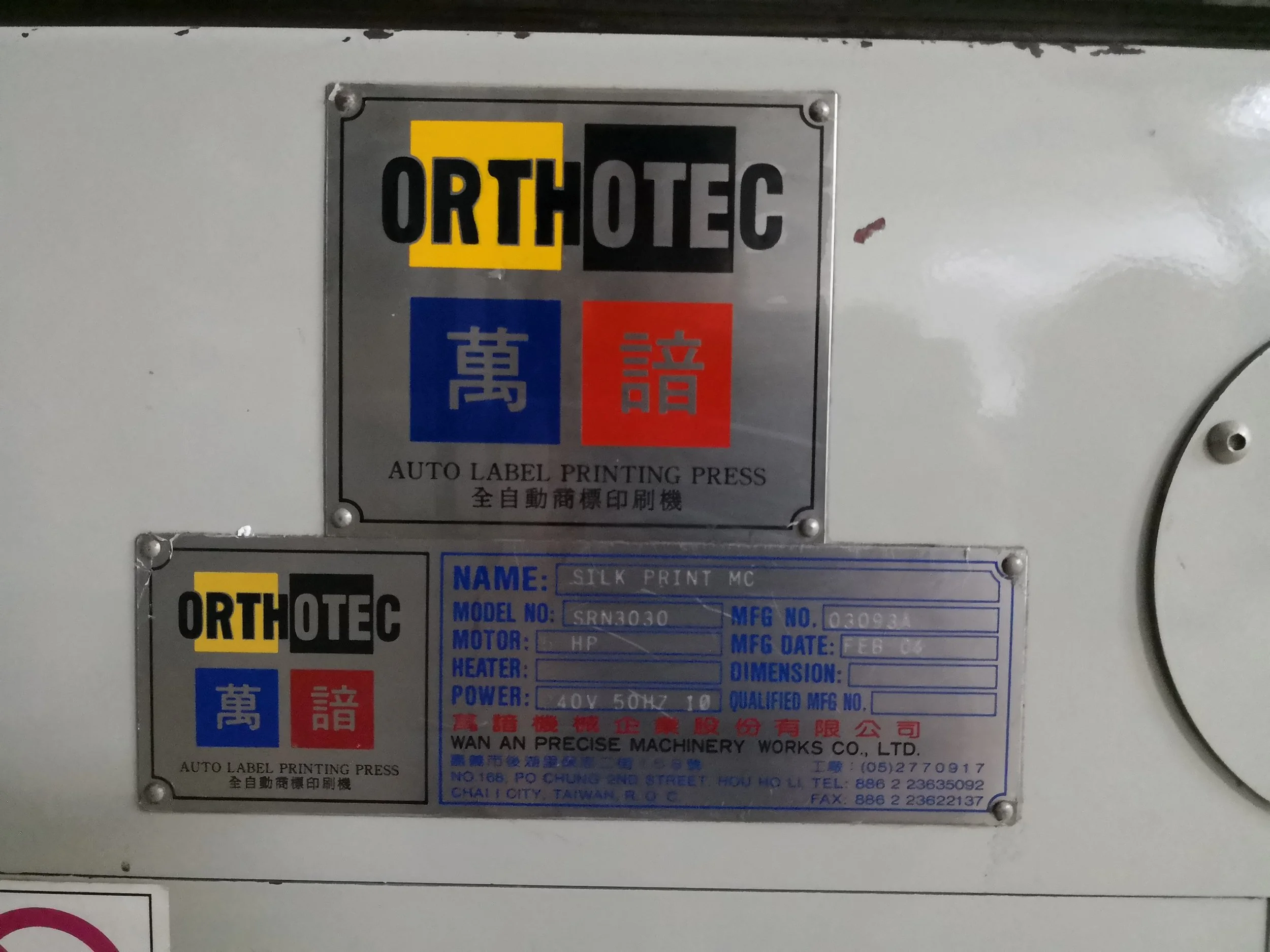

Make: Orthotec
Model: SRN3030/2UV
Age: 2004
Dimensions: 5580 x 1240 x 1360mm
Max. Printing Area: 300mm x 300mm
Max. Screen Frame: 680mm x 540mm
Max. Web Width: 330mm
Max. Diameter of Unwinding Roll: 750mm
Max. Speed: 6000RPH
Materials Thickness: 0.05-0.5mm
Main Motor: 5HP AC
Web Feeding Servo 2.5KVA
Unwind
2 x Flatbed Screen Units
2 x UV dryers
UV Model: GY484SPT
