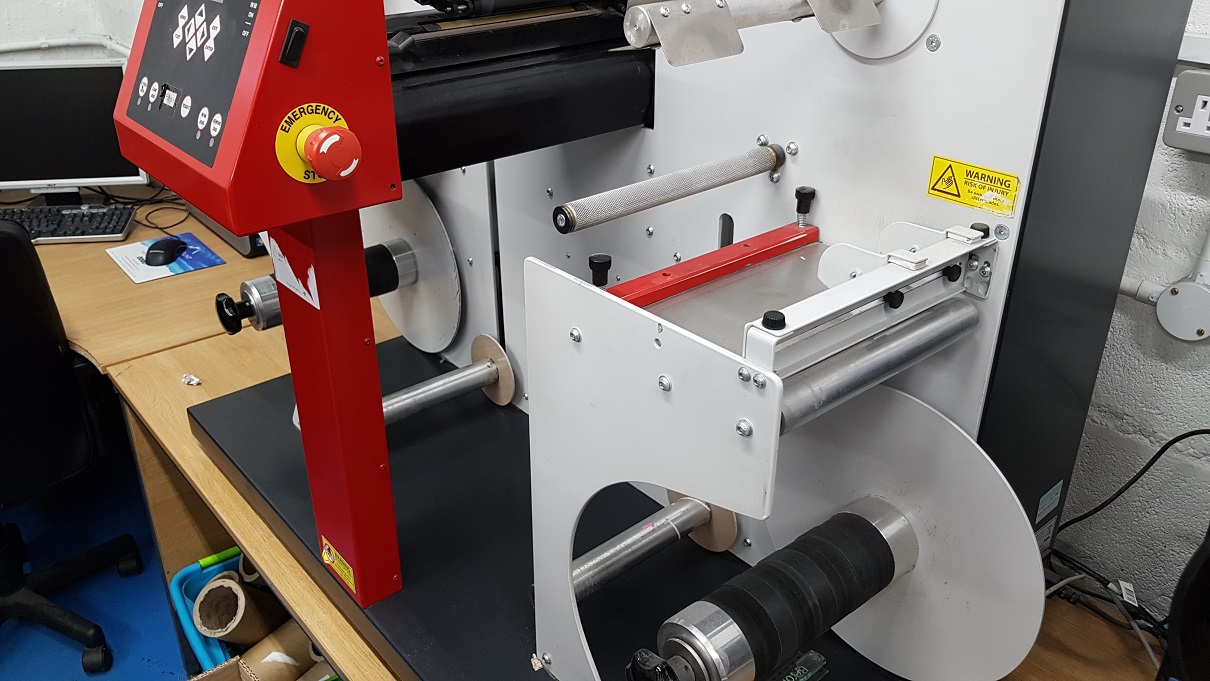

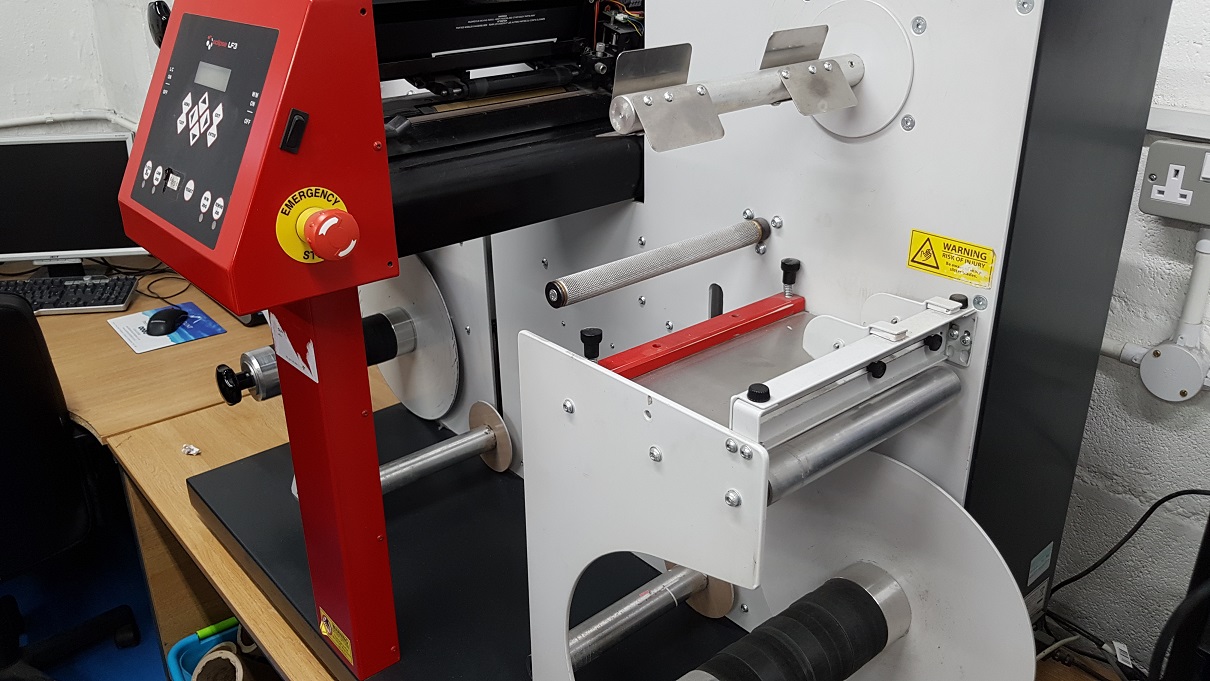

Eclipse LF3 Digital Label Finishing Machine

REF: BM00304
SOLD

No dies, just clear sharp cutting to any shape!
The world renowned Eclipse LF3 digital label finishing machine is the key to creating a stunning finish to your printed labels in a fraction of the time it takes to order and wait for cutting dies to arrive. Never again will you need to keep rolls of redundant pre-cut label shapes on the shelf.
The LF3 is suitable for established label printers or end-users who want to take control of their label finishing.

FEATURES:

Digital cutting
Summa plotter technology
Lamination for effect or to protect your labels – unsupported or linear options available
Waste matrix removal
Slitting
Final rewind

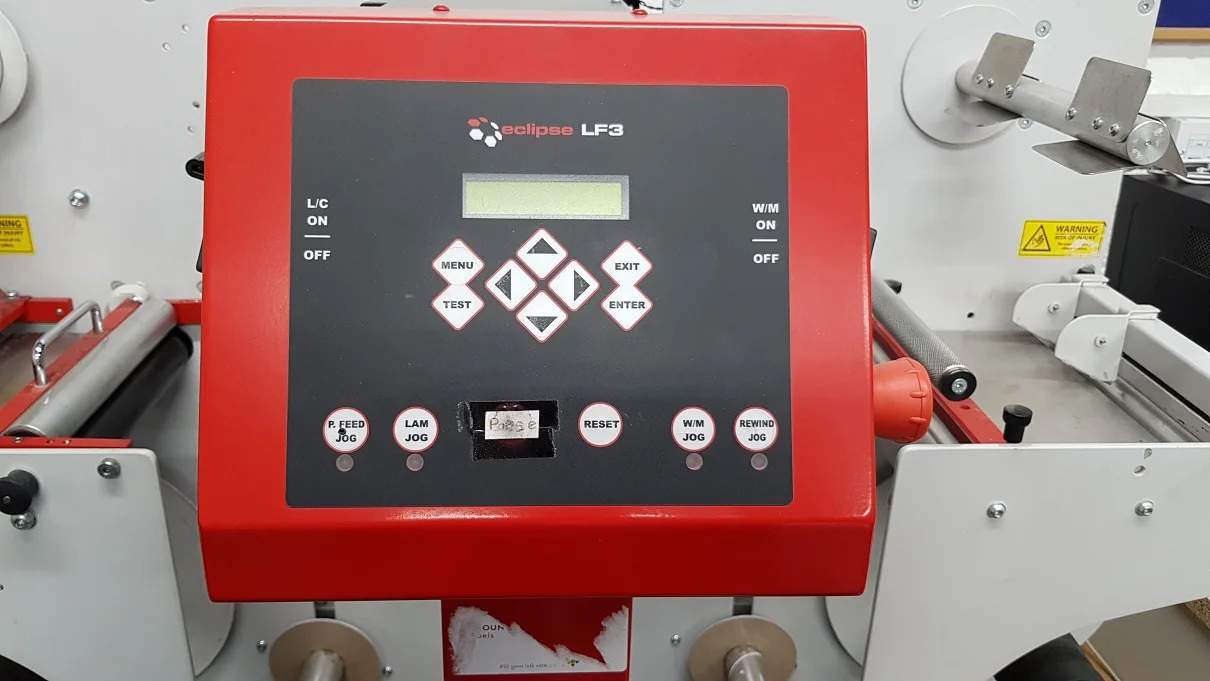

Control panel
Works with any desktop printer to create a full digital label printer solution

BENEFITS:

Cut labels on demand, and to any size without a die – no need for stock holding
Compact footprint
Simple loading and unloading
Lamination option for effects or to protect
Easy to use control panel
Full training & support provided, giving you maximum confidence
Combine with a digital label printer for a full solution

TECHNICAL SPECIFICATION:

Media width: 100-220mm
Input roll dia: Up to 300mm
Cut Label size: 20-311mm linear length
Cut type: Drag knife and tangential emulation
Single point registration system
Roll slitting: 3 blade slitting, and re-wind system

Cutting speed in labels/minute (2 up, 80mm x 80mm) 50 depending on the label size
Max unwind dia. 300mm
Max rewind dia. 300mm
Cutting technology: Summa drag knife with tangential emulation
