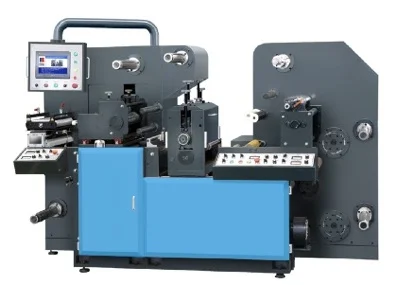

Apollo SRD-SX 330/520 Slitter Rewinder

Description

The new Apollo SRD-SX 330/520 converting machine is useful for a wide range of print, die cut, or varnish products. These can be used for both the digital offline converting and added value converting market, specially designed for die cut/pre-printed reels.

The converting of pre-printed product uses the latest too-less facility by running both full rotary and intermittent production. Extra features can be added to meet the customer’s requirements.

Specification

  • SERVO unwind cantilever unit to take 500mm dia. rolls with pneumatic shaft of 76mm

  • Tension control with SERVO drive infeed

  • Electronic web guide with ultrasonic sensing for accurate web control

  • 3 format draw rollers

  • Splicing table

  • Sideway adjustment

  • Full Rotary die cutting unit for production of plain labels from 7” – 24” repeat / 1/8” pitch

  • Semi Rotary die cutting unit for production of plain labels from 7” – 18.5” repeat / 1/8” pitch

  • Snowball matrix rewind for High-Speed production of plain labels

  • Independently driven slitting station with quick change rotary slitting blades

  • 2 SERVO cantilever duplex pneumatic product rewind shafts with 1 size of shafts included

  • Trim extraction unit

  • Motor with drive

  • Controls and drive for re-registration – to process pre-printed reels

  • Automatic HMI colour touch screen operator control unit for speed, length and label Count and user-friendly operating controls

  • Minimum cutting width 10mm

  • Cutting precision +(-) 0.2mm

  • Slitting speed, depending on material, between 80-120m/min.

  • Die cutting speed, depending on design, between 80-120m/min.

  • Dimensions 1500mm (L) x 1000mm (W) x 1200mm (H)

  • Weight 1,800kg

Optional Extras

  • Extra die cutting station with SERVO drive

  • Extra mechanical die station with mechanical link

  • Print station with SERVO drive for print/varnish

  • Cold foil unit/unwind re-wind

  • Hot foil in full rotary and intermittent mode

  • Cold UV system with step-less control

  • Full Flexo printing or intermittent

  • Extra matrix re-wind with mechanical drive

  • Lamination station with unwind

  • Extra air shafts can be added (45mm, 40mm, 25.4mm)

Each Machine comes with 1 off 76mm air shaft as standard.
