Specification

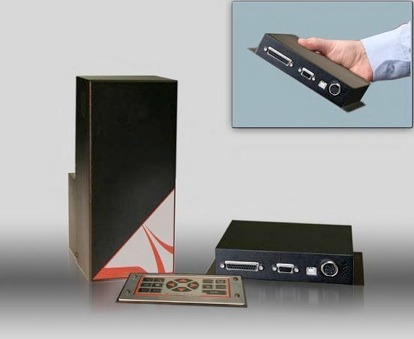

Camera
- Dimensions: 230mm x 165mm x 110mm
- Sony Super HAD Color CCD Sensor
- Motorised 18 x Zoom, Iris, Focus
- 8 Close up lens
- 90mm x 67mm appropriate maximum viewing area
Main Console
- Dimensions: 65mm x 305mm x 225mm
- Front mounted keypad to control the following: Zoom, Focus, Iris, Step movement along web
Synchronisation
- Magnetic proximity sensor
- Universal sensor mounting bracket
- 5 metres of sensor extension cable
On Screen Display
- Full Color User Interface for easy setting of system parameters and gear synchronisation
Traverse
- Manual Traverse up to 500mm
- Standard press side frame mounting bracket
Cables
- 3m Umbilical from Console to Camera
- 1.5 Power Cable
Monitor
- NOT INCLUDED
- Any PC monitor can be purchased by customer
Features
- Hyper-strobe
- Single position memory storage
- Dynamic Scan
- 180 Degree Image Flip
- Split Screen
- Non-volatile Program Settings
- Simple DIY Installation
- Internal Surge Protection
Traverse and cable length requirements vary on each press, please check to ensure that the standard lengths quoted meet your requirements.
The above specification is for a standard web viewer requiring a clean/noise free, 230 volt, 50/60 Hz 5 amp mains supply. If different is required we must be notified on receipt of order.
Please note that the Autoview system has not been designed for use within hazardous / explosive areas.
The above and attached system specification type is covered by a 1 year parts and labour only warranty from the date of dispatch.
